Wireless Power Transceiver Modules
Unleash the full potential of your products with
jjPlus resonant wireless power transceiver modules
– the ability to transfer power wirelessly at a distance or
area
– the ability to offer high tolerance of orientational
mis-alignment between the transmitter and the receiver
– the ability to power through thick surfaces of various
types i.e. wood, glass, stone, water etc.
– the ability to power multiple devices i.e. a single
transmitter to multi-receivers configuration
– compared with Magnetic Inductive systems , jjPlus’s KHz low-frequency Magnetic Resonance system can offer higher spatial freedom with very high efficiency and output power up to 200W
– the ability to charge the battery directly with CC/CV charging profile implemented in the receiver module
A transceiver module pair consists of a transmitter module and a receiver module, carefully tuned to be highly resonant with each other in order to accomplish efficient wireless power transfer. The transmitter module transmits “resonant power” from the surface area of its antenna (coil) defined by X & Y = power area and to a Z = height which is the distance from the antenna surface. The receiver module, when positioned within the space defined by X, Y and Z, receives the resonant power and performs the necessary conversions to supply to a load which is typically the battery to be charged.
| 3 Watt Dual-Receiver Transceiver Module Output power: 5V/0.6A at each receiver output  | Transmitter Module CMT003B Tx Power Area (X-Y): 249mm x 89mm Tx Power Distance (Z): 10mm to 30mm Tx module Footprint: 311mm x 89mm x 11.8mm  jjPlus_CMT003B_10W_Multi-PRU_Wireless_Power_Transmitter_20200106 | Receiver Module CMR003C Rx Receiving Area (X-Y): 40mm x 40mm Rx module Footprint: 60 x 40 x 3.9mm  jjPlus_CMR003C_3W_Wireless_Power_Receiver_20191212 |
| 35 Watt Single-Receiver Transceiver Module Output power: Max 35W, 48V/0.73A to load  | Transmitter Module CMT050A-LEB Tx Power Area (X-Y): 106mm x 106mm Tx Power Distance (Z): 20mm to 50mm Tx Footprint: 106mm x 106mm x 4.1mm (coil board), 80 x 40 x 14.9mm (control board) jjPlus_35W_wireless_power_transceiver_module_48Vout_20200103_Rev.01 | Receiver Module CMR050A-LEB Rx Receiving Area (X-Y): 106mm x 106mm Rx Footprint: 106mm x 106mm x 4.1mm (coil board), 80 x 40 x 14.9mm (control board) |
| 65 Watt Single-Receiver Transceiver Module Output power: Max 65W, 48V/1.35A to load  | Transmitter Module CMT050A-LED Tx Power Area (X-Y): 106mm x 106mm Tx Power Distance (Z): 20mm to 45mm Tx Footprint: 106mm x 106mm x 4.1mm (coil board), 80mm x 80mm x 14.9mm (control board) jjPlus_65W_wireless_power_transceiver_module_48Vout_20200103_Rev.01 | Receiver Module CMR050A-LED Rx Receiving Area (X-Y): 106mm x 106 mm Rx Footprint: 106mm x 106mm x 4.1mm (coil board), 80mm x 80mm x 14.9mm (control board) |

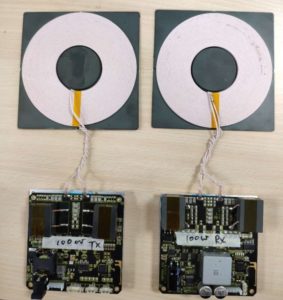

| 100 Watt Single-Receiver Transceiver Module Output power: Max 100W, 48V/2.08A to load  | Transmitter Module CMT050A-LEF Tx Power Area (X-Y): 106mm x 106mm Tx Power Distance (Z): 20mm to 35mm Tx Footprint: 106mm x 106mm x 4.1mm (coil board), 80mm x 80mm x 14.9mm (control board) jjPlus_100W_wireless_power_transceiver_module_48Vout_20200103_Rev.01 | Receiver Module CMR050A-LEF Rx Receiving Area (X-Y): 106mm x 106mm Rx Footprint: 106mm x 106mm x 4.1mm (coil board), 80mm x 80mm x 14.9mm (control board) |
| 200 Watt Single-Receiver Transceiver Module Output power: Max 200W, 48V/4.02A to load  | Transmitter Module CMT050A-LEI Tx Power Area (X-Y): 106mm x 106mm Tx Power Distance (Z): 30mm to 45mm Tx Footprint: 106mm x 106mm x 4.1mm (coil board), 80mm x 80mm x 20mm (control board) jjPlus_200W_wireless_power_transceiver_module_48Vout_20200615_Rev.04 | Receiver Module CMR050A-LEI Rx Receiving Area (X-Y): 106mm x 106mm Rx Footprint: 106mm x 106mm x 4.1mm (coil board), 80mm x 80mm x 20mm (control board) |
| 160 Watt Single-Receiver Transceiver Module Output power: Max 160W, charge the 13S battery directly up to 54.6V/3A  | Transmitter Module CMT153S Tx Power Area (X-Y): 106mm x 106mm Tx Power Distance (Z): 10mm to 20mm Tx Footprint: 106mm x 106mm x 6mm (coil board), 80mm x 80mm x 15mm (control board) jjPlus_160W_wireless_power_transceiver_module_Rev.01 | Receiver Module CMR153S Rx Receiving Area (X-Y): 90mm x 90mm Rx Footprint: 90mm x 90mm x 6mm (coil board), 80mm x 80mm x 15mm (control board) |
